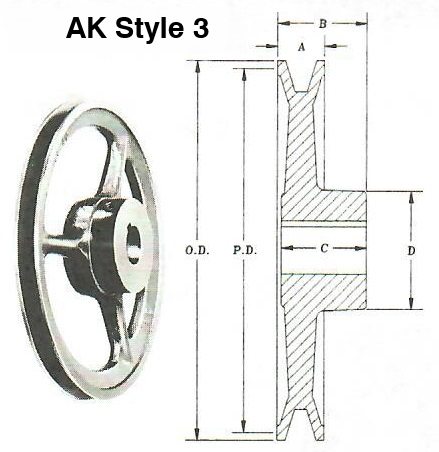

Style 1

Belt Sections "A" (4L) & "O" (3L), Single Groove, Fixed Bore Sheave

O.D inches
Part #
Alt #
"A" P.D.
"O" P.D.
Style
1/2
5/8
3/4
7/8
1"
A
B
C
D
1.75
2175
AK17
1.5
----
X
X
X
5/8"
1-1/16"
1-1/16"
1-1/2"
2.00
2200
AK20
1.7
----
X
X
X
3/4"
1-1/4"
1-1/8"
1-5/8"
2.10
2210
AK21
1.8
1.5
X
X
X
3/4"
1-1/4"
1-1/8"
1-5/8"
2.25
2225
AK22
2.0
1.7
X
X
X
X
X
3/4"
1-1/4"
1-1/8"
1-5/8"
2.50
2250
AK25
2.2
1.9
X
X
X
X
X
3/4"
1-5/16"
1-1/8"
1-5/8"
2.75
2275
AK27
2.5
2.2
X
X
X
X
X
3/4"
1-5/16"
1-1/8"
1-5/8"
3.00
2300
----
2.7
2.4
X
X
X
X
X
3/4"
1-5/16"
1-1/8"
1-7/8"
3.25
AC33
AK32
3.0
2.7
X
X
X
X
X
3/4"
1-7/16"
1-1/4"
1-7/8"
3.45
AC35
AK34
3.2
2.9
X
X
X
X
X
3/4"
1-7/16"
1-1/4"
1-7/8"
3.75
AC38
AK39
3.5
3.2
X
X
X
X
X
3/4"
1-7/16"
1-1/4"
1-7/8"
4.00
AC40
AK41
3.7
3.4
X
X
X
X
X
3/4"
1-7/16"
1-1/8"
1.828"
4.25
AC43
AK44
4.0
3.7
X
X
X
X
X
3/4"
1-3/8"
1-3/8"
1-3/4"
4.45
AC45
AK46
4.2
3.9
X
X
X
X
X
3/4"
1-3/8"
1-3/8"
1-3/4"
5.00
AC50
AK51
4.7
4.4
X
X
X
X
X
3/4"
1-3/8"
1-1/8"
1-7/8"
5.45
AC55
AK56
5.2
4.9
X
X
X
X
X
3/4"
1-3/8"
1-3/8"
1-7/8"


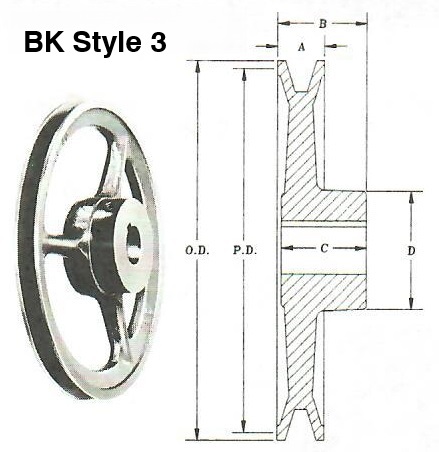

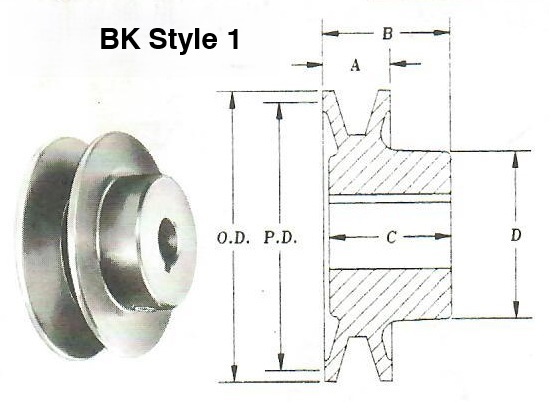

Style 1

Belt Sections "B" (5L) & "A" (4L), Single Groove, Fixed Bore, 4L & 5L Belt
O.D. inches
Part #
Alt #
"B" P.D.
"A" P.D.
Style
1/2
5/8
3/4
7/8
1"
A
B
C
D
2.40
----
BK24
2.2
1.8
1
X
X
X

13/16"
1-7/32"
1-1/16"
----
2.50
4250
BK25
2.1
1.7
1
X
X
X
7/8"
1-1/2"
1-3/8"
1-5/8"
2.60
4260
BK26
2.2
1.8
1
X
X
X
X
X
7/8"
1-1/2"
1-3/8"
1-5/8"
2.70
----
BK27
2.5
2.1
1
X
X
X
X
X
13/16"
1-7/32"
1-1/16"
----
2.95
BC30
BK28
2.6
2.2
1
X
X
X
X
X
7/8"
1-1/2"
1-3/8"
1-7/8"
3.15
BC32
BK30
2.8
2.4
1
X
X
X
X
X
7/8"
1-1/2"
1-3/8"
1-7/8"
3.35
BC34
BK32
3.0
2.6
1
X
X
X
X
X
7/8"
1-1/2"
1-3/8"
1-7/8"
3.55
BC36
BK34
3.2
2.8
1
X
X
X
X
X
7/8"
1-1/2"
1-3/8"
1-7/8"
3.75
BC38
BK36
3.4
3.0
1
X
X
X
X
X
7/8"
1-1/2"
1-3/8"
1-7/8"
3.95
BC40
BK40
3.6
3.2
1
X
X
X
X
X
7/8"
1-1/2"
1-3/8"
1-7/8"
4.15
BC42
-----
3.8
3.4
1
X
X
7/8"
1-1/2"
1-5/16"
1-7/8"
4.35
BC44
----
4.0
3.6
1
X
7/8"
1-1/2"
1-5/16"
1-7/8"
4.55
BC46
----
4.2
3.8
1
X
X
X
X
X
7/8"
1-1/2"
1-5/16"
1-7/8"
4.95
BC50
BK52
4.6
4.2
3
X
X
X
X
X
7/8"
1-1/2"
1-1/2"
1-7/8"
5.35
BC54
----
4.2
3.8
3
X
X
X
X
X
7/8"
1-5/8"
1-3/8"
1-15/16"

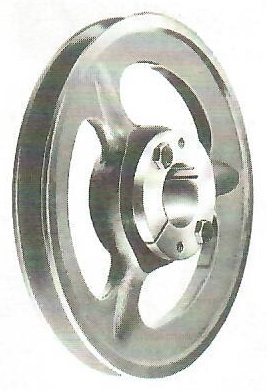

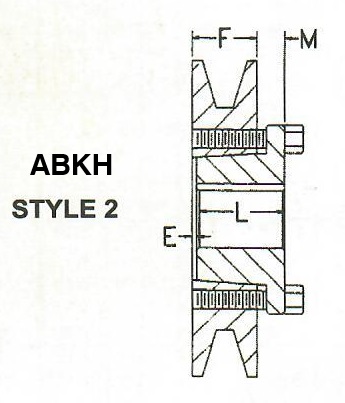

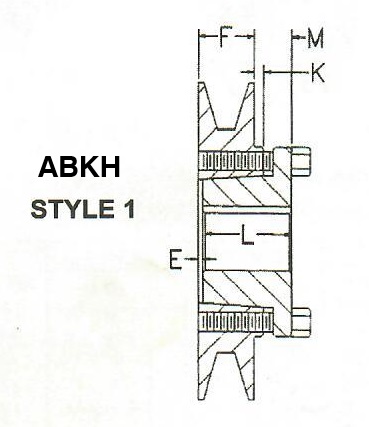

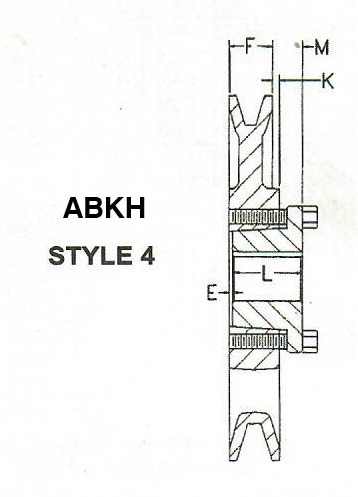

2AK Style 1

Belt Sections "A" (4L) & "O" (3L), Single Groove Sheave, QD (H) Bushings
O.D. inches
Part #
Alt #
"A" P.D.
"O" P.D.
Style
Bushing
E
F
K
L
M
3.25
----
AK32H
3.0
2.7
H
3/8"
3/4"
7/16"
1-1/4"
7/8"
3.45
----
AK34H
3.2
2.8
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
3.75
----
AK39H
3.5
3.2
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
3.95
AH40
AK41H
3.3.7
3.4
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
4.25
AH43
AK44H
4.0
3.7
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
4.45
AH45
AK46H
4.2
4.9
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
4.75
AH48
AK49H
4.5
4.2
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
5.00
AH50
AK51H
4.7
4.4
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
5.25
AH53
AK54H
5.0
4.7
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
5.45
AH55
AK56H
5.2
4.9
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
5.95
AH60
AK61H
5.7
5.4
H
1/16"
3/4"
1/8"
1-1/4"
9/16"
6.25
AH63
AK64H
6.0
5.7
H
1/16"
3/4"
1/8"
1-1/4"
9/16"


2AK Style 1

Belt Sections "B" (5L) & "A" (4L), Single Groove Sheave, QD (H) Bushings
O.D. inches
Part #
Alt #
"B" P.D.
"A" P.D.
Bushing
Style
E
F
K
L
M
3.35
BH34
BK32H
3.0
2.6
H
15/16"
7/8"
7/8"
1-1/4"
1-5/16
3.55
BH36
BK34H
3.2
2.8
H
15/16"
7/8"
7/16"
1-1/4"
1-5/16
3.75
BH38
BK36H
3.4
3.0
H
1/16"
7/8"
0
1-1/4"
7/16"
3.95
BH40
BK40H
3.6
3.2
H
1/16"
7/8"
0
1-1/4"
7/16"
4.15
BH42
----
3.8
3.4
H
1/16"
7/8"
0
1-1/4"
7/16"
4.35
BH44
----
4.0
3.6
H
1/16"
7/8"
0
1-1/4"
7/16"
4.45
----
BK47H
4.1
3.7
H
1/16"
7/8"
0
1-1/4"
7/16"
4.75
BH48
BK50H
4.4
4.0
H
1/16"
7/8"
0
1-1/4"
7/16"
4.95
BH50
BK52H
4.8
4.4
H
1/16"
7/8"
0
1-1/4"
7/16"
5.25
BH53
BK55H
4.9
4.5
H
1/16"
7/8"
0
1-1/4"
7/16"
5.55
BH56
----
5.2
4.8
H
1/16"
7/8"
0
1-1/4"
7/16"
5.95
BH60
BK62H
5.6
5.2
H
1/16"
7/8"
0
1-1/4"
7/16"


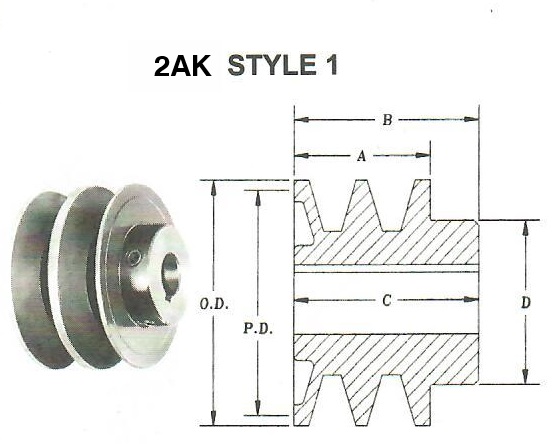

2AK Style 1

Belt Sections "A" (4L) & "O" (3L), 2 Groove, Min. Bore & (H) Bushings
O.D. inches
Part #
Alt #
"A" P.D.
"O" P.D.
Bore
Style
A
B
C
D
2.00
D2200
2AK20
1.7
----
1/2"
2AK1
1-1/4"
1-11/16"
1-11/16"
1-5/8"

2.25
D2225
2AK22
2.0

1.7
1/2"
2AK1
1-1/4"
1-11/16"
1-11/16"
1-7/8"

2.45
D2250
----
2.2
1.9
1/2"
2AK1
1-1/4"
1-11/16"
1-11/16"
2-1/8"

2.75
D2275
2AK27
2.5
2.2
1/2"
2AK1
1-1/4"
1-11/16"
1-11/16"
2-1/4"

2.95
D2300
----
2.7
2.4
1/2"
2AK1
1-3/8"
2"
1-7/8"
2.45"

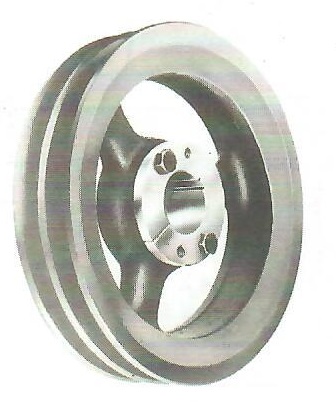

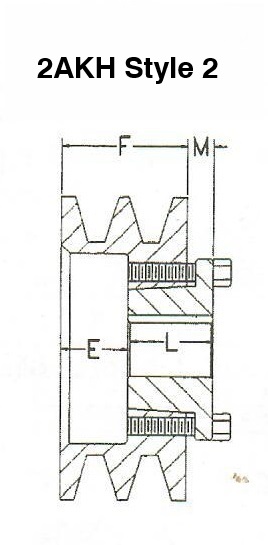

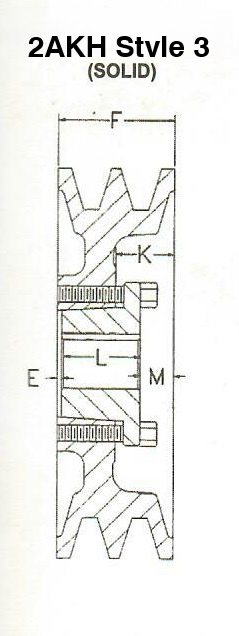

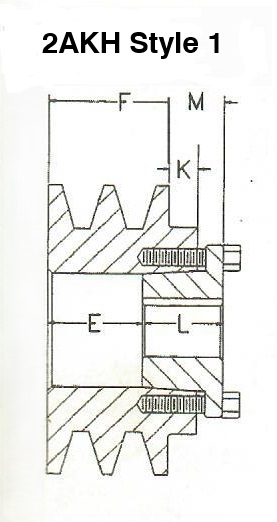

O.D. inches
Part #
Alt #
"A" P.D.
"O" P.D.
Bushing
Style
E
F
K
L
M
3.05
DH2300
2AK30H
2.8
2.5
H
2AKH1
1"

1-3/8"
7/16"
1-1/4"
7/8"
3.25
DH2325
2AK32H
3.0
2.7
H
2AKH1
1"
1-3/8"
7/16"
1-1/4"
7/8"
3.45
DH2350
2AK34H
3.2
2.9
H
2AKH2
9/16"
1-3/8"
0
1-1/4"
7/16"
3.75
DH2380
2AK39H
3.5
3.2
H
2AKH2
9/16"
1-3/8"
0
1-1/4"
7/16"
3.95
DH2400
2AK41H
3.7
3.4
H
2AKH3
1/16"
1-3/8"
1/2"
1-1/4"
1/16"
4.25
DH2425
2AK44H
4.0
3.7
H
2AKH3
1/16"
1-3/8"
1/2"
1-1/4"
1/16"
4.45
DH2450
2AK46H
4.2
3.9
H
2AKH3
1/16"
1-3/8"
1/2"
1-1/4"
1/16"
4.75
DH2480
2AK49H
4.5
4.2
H
2AKH3
1/16"
1-3/8"
1/2"
1-1/4"
1/16"
4.95
DH2500
2AK51H
4.7
4.4
H
2AKH3
1/16"
1-3/8"
1/2"
1-1/4"
1/16"
5.25
DH2525
2AK54H
5.0
4.7
H
2AKH3
1/16"
1-3/8"
1/2"
1-1/4"
1/16"

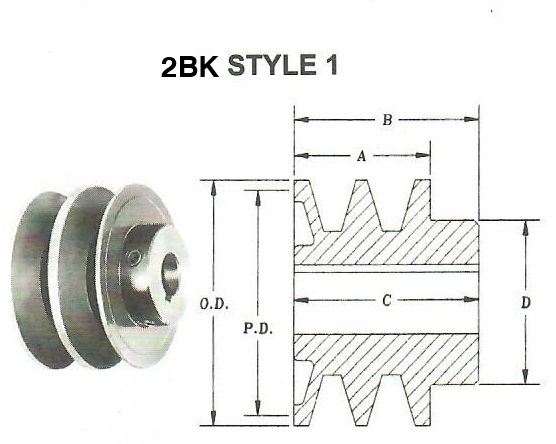

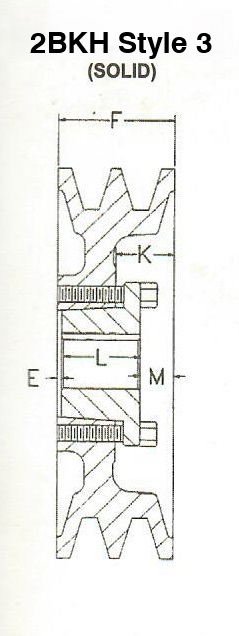

2BK Style 1

Belt Sections B (5L) & A (4L), Two Groove Sheave, QD (H & P1) Bushings
O.D. inches
Part #
Alt #
"B" P.D.
"A" P.D.
Bore
Style
A
B
C
D

2.95
D4300
2BK28
2.6
2.2
1/2"
1-3/4"

2-3/8"
2-1/4"
2.45"

3.15
D4320
2BK30
2.8
2.4
1/2"
1-3/4"
2-3/8"
2-1/4"
2.45"

3.35
----
2BK34
3.2
2.8
1/2"
1-3/4"
2-3/8"
2-1/4"
2.45"


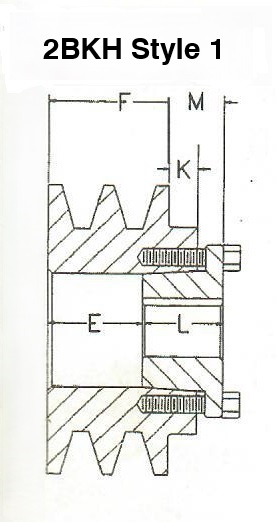

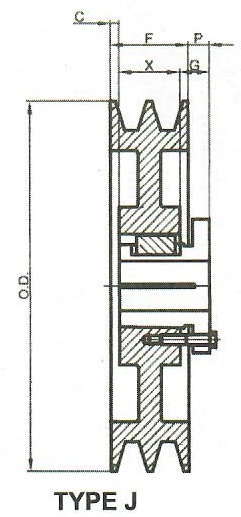

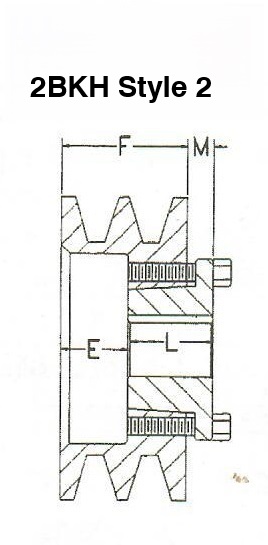

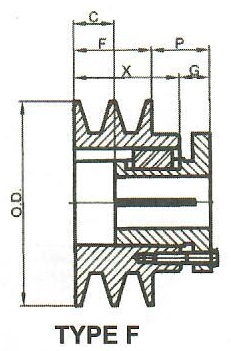

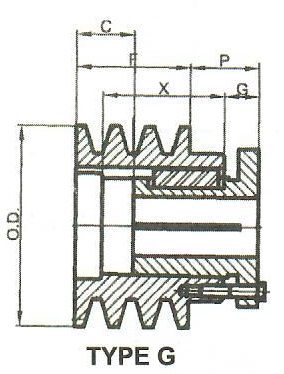

O.D. inches
Part #
Alt #
"B" P.D.
"A" P.D.
Bushing
Style
E / P
C / F
G / K
L / X
M
3.55
----
2BK34H
3.2
2.8
H
E=1-3/8"
F=1-3/4"
K=7/16"
L=1-1/4"
7/8"
3.75
----
2BK36H
3.4
3.0
H
E=15/16"
F=1-3/4"
K=0
L=1-1/4"
7/16"
3.75
----
2TB34-P1
3.4
3.0
P1
P=1-1/16"
C=7/8"
G=5/8"
X=2-3/16"

3.95
----
2BK40H
3.6
3.2
H
E=15/16"
F=1-3/4"
K=0
L=1-1/4"
7/16"

3.95
----
2TB36-P1
3.6
3.2
P1
P=1-1/16"
C=7/8"
G=5/8"
X=2-3/16"
4.15
DH4420
----
3.8
3.4
H
E=15/16"
F=1-3/4"
K=0
L=1-1/4"
7/16"
4.35
DH4440
----
4.0
3.6
H
E=1/16"
F=1-3/4"
K=7/8"
L=1-1/4"
7/16"
4.35
----
2TB40-P1
4.0
3.6
P1
P=5/8"
C=7/16"
----
X=1-5/16"
4.55
----
2TB42-P1
4.2
3.8
P1
P=5/8"
C=7/16"
----
X=1-5/16"
4.75
----
2BK50H
4.4
4.0
H
E=1/16"
F=1-3/4"
K=7/8"
L=1-1/4"
7/16"
4.75
----
2TB44-P1
4.4
4.0
P
P=3/16"
----
G=5/8"
X=1-5/16"
4.95
----
2BK52H
4.6
4.2
H
E=1/16"
F=1-3/4"
K=7/8"
L=1-1/4"
7/16"
4.95
----
2TB46-P1
4.6
4.2
P1
P=3/16"
----
G=5/8"
X=1-5/16"
5.15
DH4520
----
4.8
4.4
H
E=1/16"
F=1-3/4"
K=7/8"
L=1-1/4"
7/16"
5.15
----
2TB48-P1
4.8
4.4
P1
P=3/16"
----
G=5/8"
X=1-5/16"



Misc. Sheaves

O.D. inches
# Grooves
Belt
Mfg.
Part #
Bore
Condition
Notes:
6.35
4
B
Browning
P1
NOS Shelf Wear
eBay Item  306507044646
8.0
1
B
Unknown
----
5/8"
NOS Fair
eBay Item  306097132242
4-3/4
3
VX
TB Woods
SDS
Uesd, Excellent
eBay Item  306030601980
10.0
2
A
Unknown
----
1"
NOS Good
eBay Item  305762393039
11.0
2
B
TB Woods
1-1/8"
NOS Good
eBay Item  305347871860
15-3/4
2
B
Browning
H
NOS Good
eBay Item  306627246606
15-3/4
4
B
TB Woods
SF
Used, Serviceable
eBay Item  306712894327

12.25
2
A
Browning
Q1
NOS, Fair
eBay Item  306712829392

9.4
4
C
Browning
Q2
NOS, Fair
eBay Item  305950695957
10.9
4
B
Unknown
----
E
NOS, Excellent
eBay Item  305357746066
